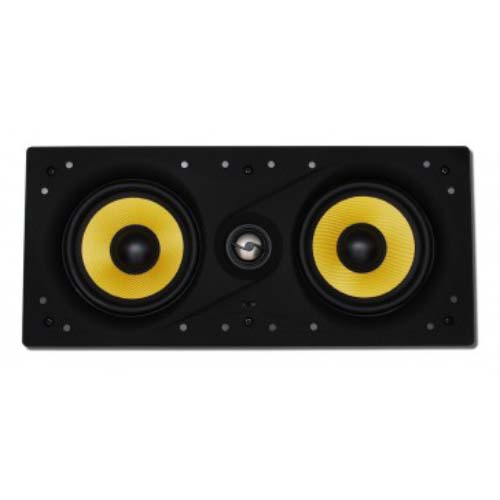

Speaker Thin Bezel
| Design: | 2-way TSLB magnetically mounted grill TEI mounting bracket TIMPC enclosure TEC binding posts |
| High-Frequency Driver: | 25 mm (1”) TPTTD dome Swivel mount, +/-3 dB Treble switch |
| Bass/Midrange Driver: | 2 x 133 mm (5.25”) Kevlar® |
| Maximum Power: | 100 W |
| Frequency Response: | 50 Hz – 20000 Hz |
| Impedance: | 8 ohm |
| Dimensions: | 38.6 x 17.5 x 8.2 cm |
| Minimum Mounting Depth: | 78 mm |
| Cutout Dimensions (D or H x W): | 365 × 155 mm |
| Weight: | 2.75 kg pc. |
| Finish: | WHITE, PAINTABLE
(black rubber-coated front) |
TAGA Harmony TLCR series speakers provide superior sound performance at amazing price levels. They utilize very stiff and strong injection-molded polymer chassis, which minimize distortion, vibrations or resonances and specialized mounting brackets that make installation very easy. All speakers are designed to be used both in music and home theatre systems in any area of your home or commercial applications.
The newest additions to the TLCR series, which are coded with number 80 at the end of model names, utilize a honeycomb structure of front panels to further stiffen speaker chassis and to disperse the reflected sound. The front panel is rubber coated for more luxurious look and to provide even better effect on sound performance.
Low-profile bezel, magnetically mounted grills allow the speakers almost disappears in a room.
Nowadays the expectation from modern in-wall and in-ceiling speakers is not only the great sound but less visibility at the same time.
The sound is clear, natural, dynamic and provides wide dispersion throughout a listening area, and thanks to slim bezels you are hard to see speakers mounted in your wall or ceiling!
The proper design facilitates installations thanks to many specialized features:
- Very slim chassis to allow installations even in shallow places;
- TIMPC – TAGA Injection-Molded Polymer Chassis with a honeycomb structure is very rigid and strong to minimize distortions, vibrations or resonances. Additional rubber coating further stiffens chassis and improves sound performance;
- TEI – TAGA Easy Install mounting brackets are extremely easy and safe to install.The ABS clamps are in a visible blue color to ease installation in dark places;

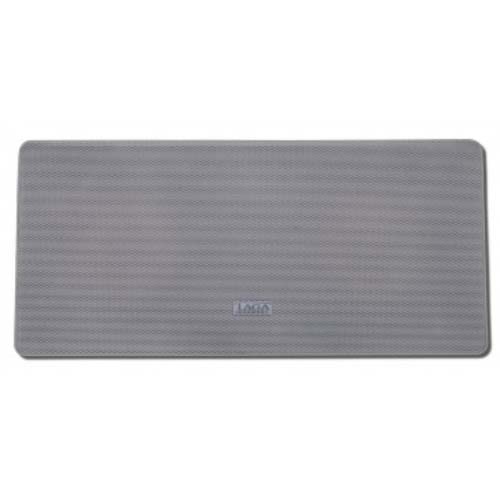

- TSLB – TAGA Super Low-profile Bezel grills are magnetically mounted and paintable.They are aesthetic and virtually disappear in the ceiling or wall;
- +/- 3dB Environmental Equalizer (treble switch) compensates for speaker positioning and room anomalies;
- Swivel tweeter to direct a high frequency stream toward selected area in a room;
- TEC – TAGA Easy Connection: all speakers use high quality push-in banana binding posts accepting raw speaker cables up to 10AWG and most popular types of connectors (banana or pin plugs). Our binding posts make your installation very easy task to do;
- High 8 ohm impedance.
TLCR SERIES
GRILLS, CHASSIS AND BRACKETS
Chassis made of very rigid and strong injection-molded polymer to minimize distortion, vibrations or resonances. Sandwich-like mounting brackets are very easy to install and reinforce area around the mounting hole. All grills and chassis of TAGA Harmony speakers are paintable. Logo badge can be placed on grill in the different position depending whether the speaker is used as Center or L/R channel.
TWEETERS
Depending on the model we use 1” (25mm) or 0.75” (19mm) ferrofluid cooled and damped, silk dome or titanium tweeters. All models utilize pivoting tweeter, so it can be pointed in the direction of area where the best, clear high frequencies are required. The performance of our tweeters can be characterized as very accurate, clear, smooth and detailed as well as can handle high power inputs. We pay special attention to equal and flat dispersion of sound in and off the axis of the driver.
WOOFER
Woofer utilizing polypropylene cone and heavy duty voice coil and coil former is responsible for high power handling as well as deep, precise and detailed bass and rich, sweet midranges. Selected models have woofers with Kevlar® cones, which are ultra rigid and light, ensure great dispersion at all frequencies, extra dynamic, natural, clear and powerful sound performance.

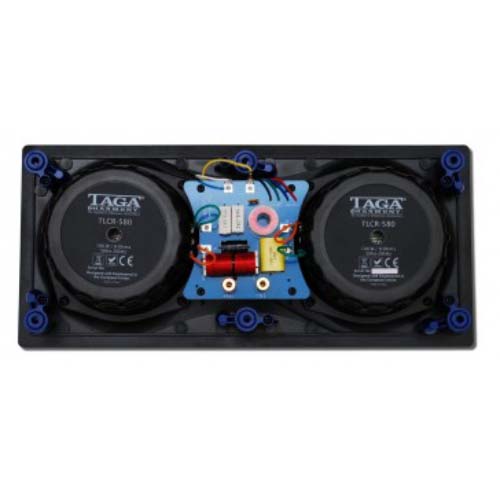

CROSSOVER
High quality, close-tolerance and precisely selected crossovers’ components and internal wires for absolute sound neutrality, high long-term power and reliability.
SPEAKERS’ BINDING POSTS
All speakers use high quality push-in banana binding posts accepting raw speaker cables up to 10AWG and most popular types of connectors. These binding posts make installation very easy task to do.
